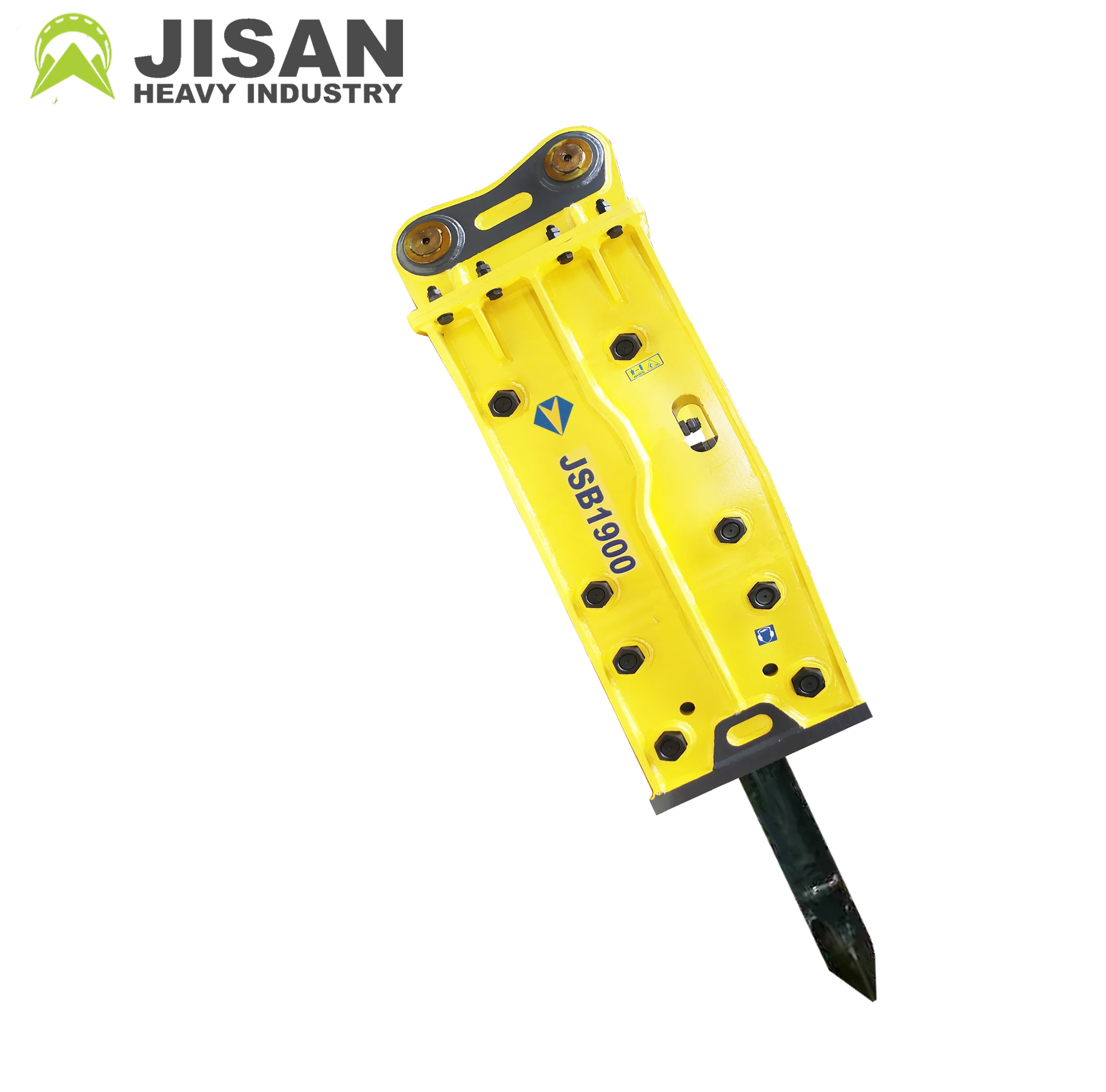

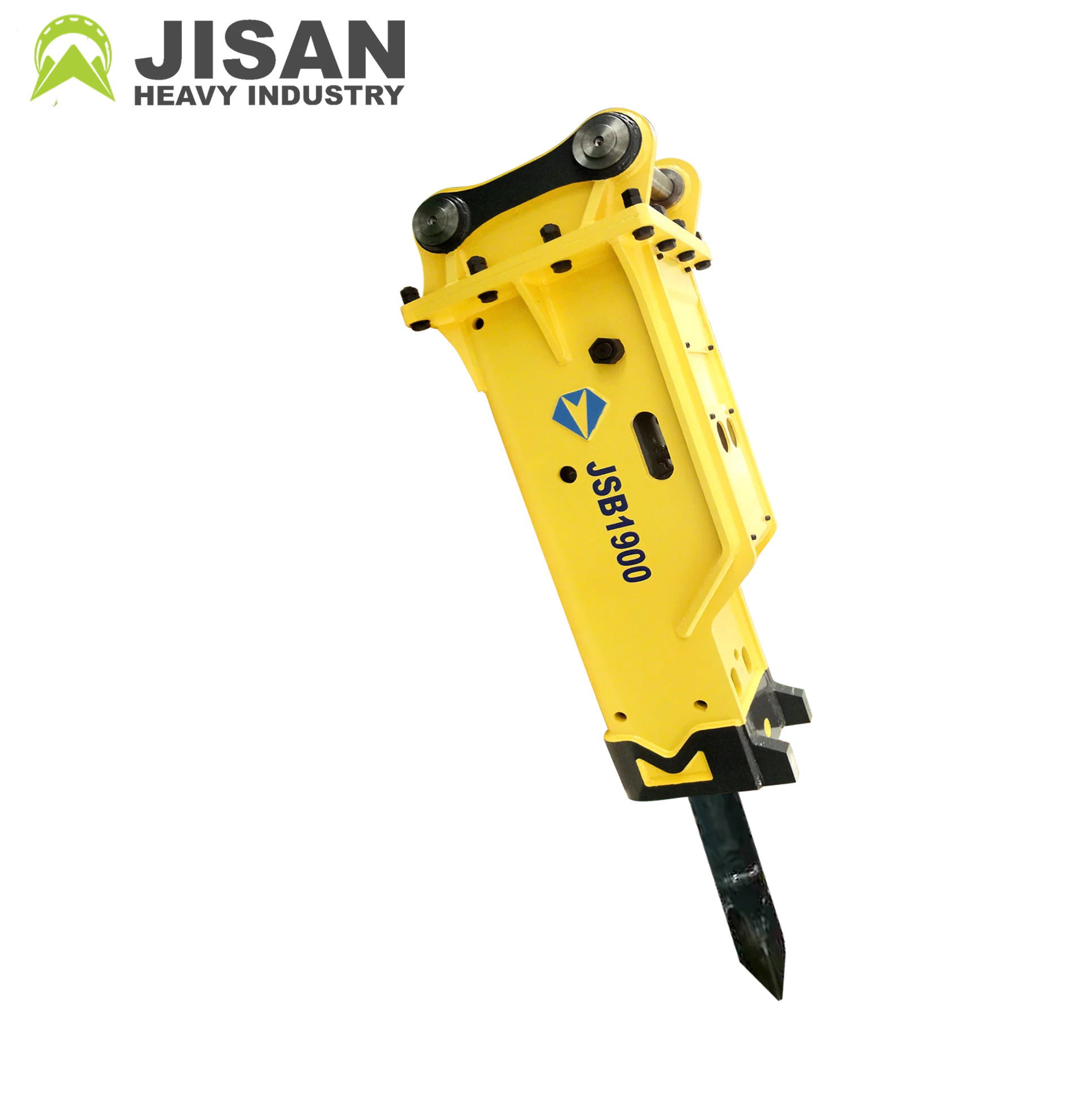

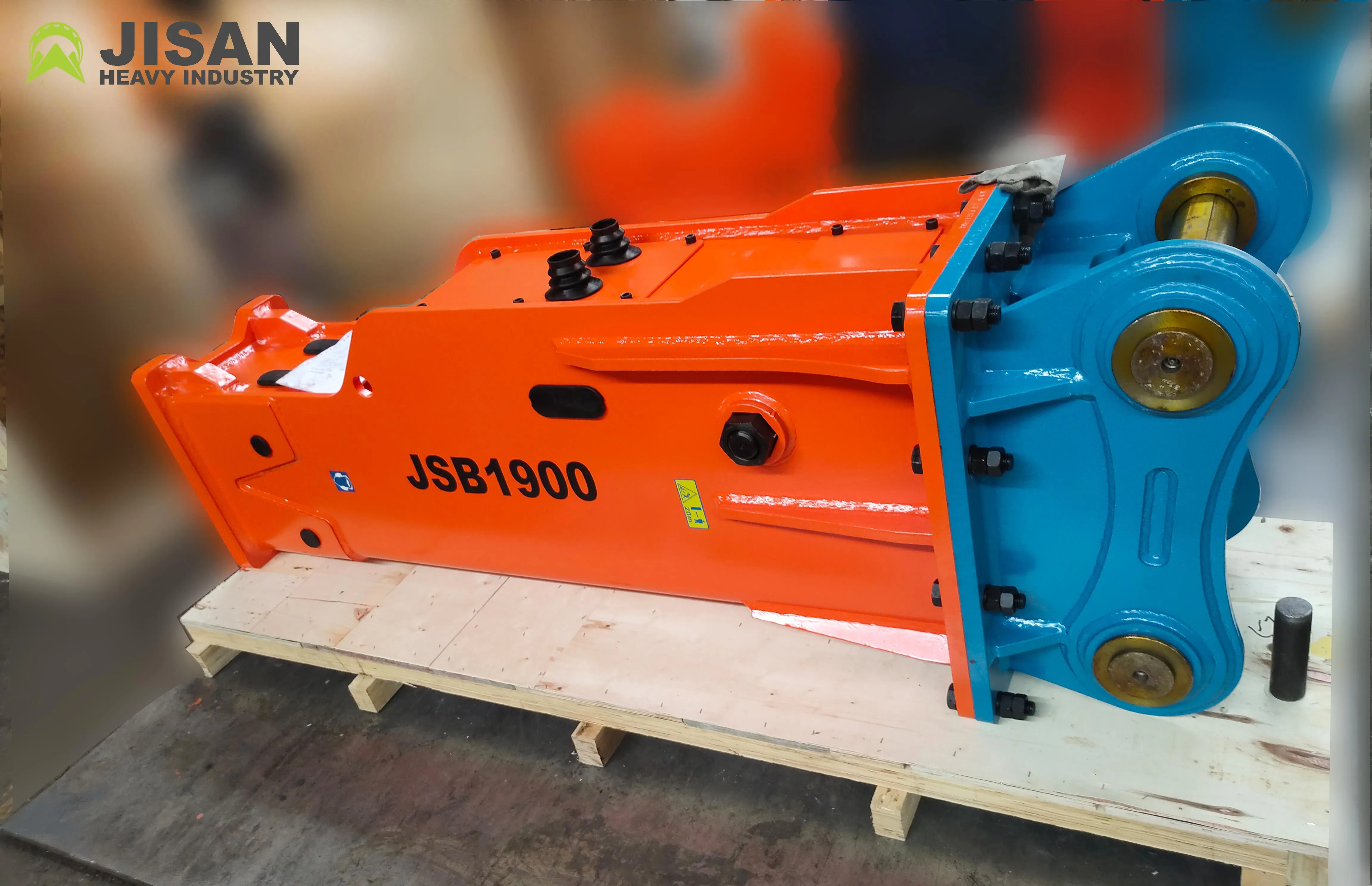

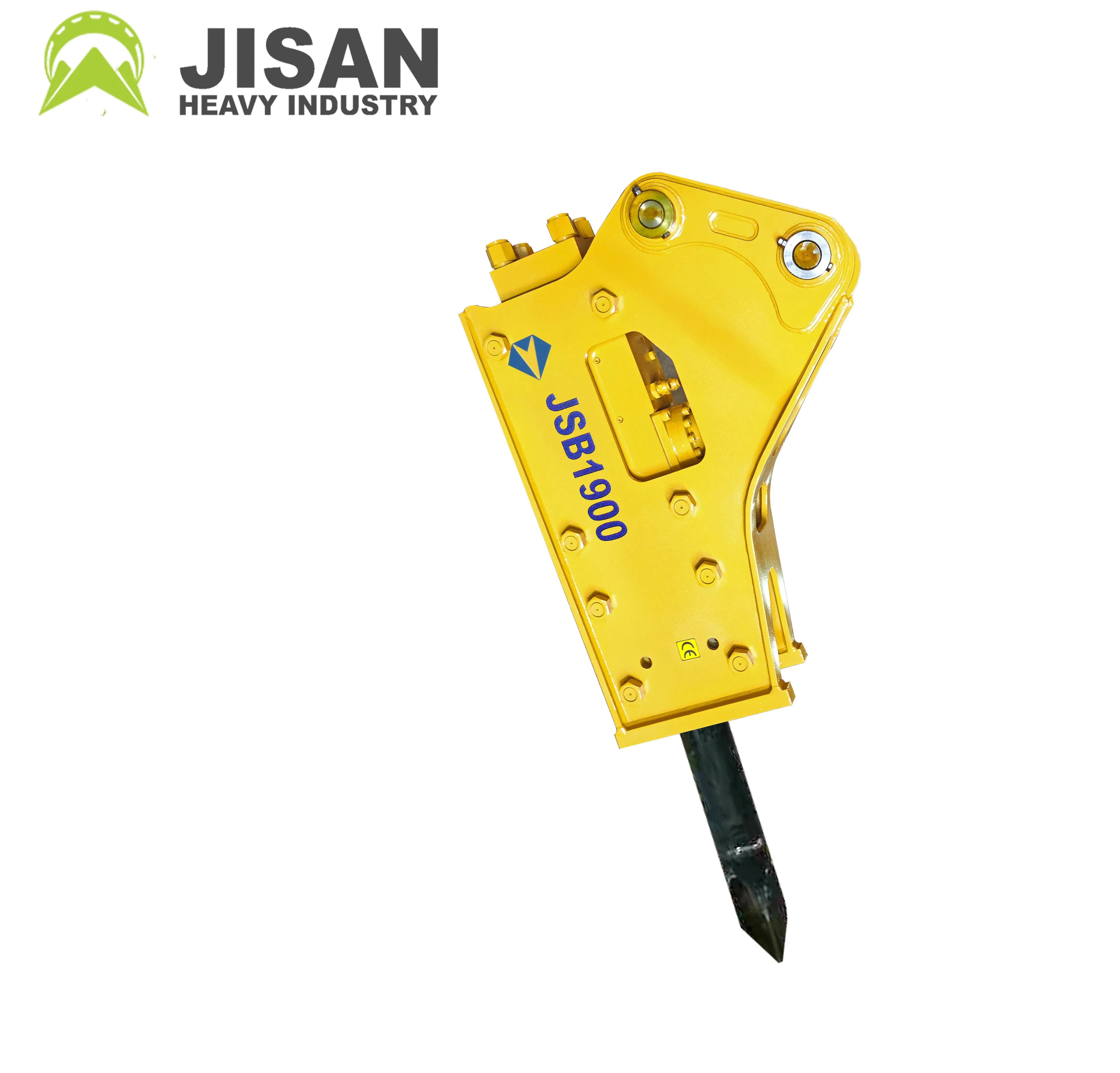

JISAN Hydraulic Rock Breaker Hammer with 19-26 ton Suitable Excavator Hydraulic-gas System and High Energy Impact Frequency

Name: JISAN Hydraulic Rock Breaker Hammer with 1926 ton Suitable Excavator Hydraulicgas System and High Energy Impact Frequency
Brand: JISAN
Price: 1 USD

Quality JISAN Hydraulic Rock Breaker Hammer with 19-26 ton Suitable Excavator Hydraulic-gas System and High Energy Impact Frequency for sale

Place of Origin : Shandong, China

Brand Name : JISAN

Model Number : JSB1900T

Certification : CE

MOQ : 1

Weight : 1989 kg

Suitable Excavator : 19-26 ton

Rod diameter : 140 mm

System : Hydraulic-gas System

Core Components : PLC, Engine

Impact system : Hydraulic + nitrogen

Heat treatment : Enhanced resistance

Material : Heavy duty steel

Flow adjustment : Adjustable

Impact force : Adjustable

Beat frequency : Adjustable

Wear parts : Durable

Manufacturing technology : South Korea

Energy efficiency : High

Impact frequency : High

Contact Now

JISAN Hydraulic Rock Breaker Hammer with 19-26 ton Suitable Excavator Hydraulic-gas System and High Energy Impact Frequency

Feature Details

1. Selected raw material - high quality heavy duty wear resistant steel.
2. Leading heat treatment technology. Heat resistance and abrasion resistance are enhanced.
3. The device can adjust the flow fromexcavator and power source, so it can adjust the impact force and beat frequency according
to different working situation.
4. High-quality and durable wear parts ,longer use, easy maintenance.
5. Strong " hydraulic + nitrogen " impact system, increase stability.
6. Advanced manufacturing facilities and technology, introduced from South Korea.
7. High energy and impact frequency, High-performance optimized hydraulic unit.non-pollution and non-damage to piles, etc.

JISAN Hydraulic Breaker has 3 main types:

Silenced Hydraulic Breaker:

Low noise, saving energy and protecting environment.

Side Type Hydraulic Breaker:

Versatile application including rock broken, paving road, building demolition etc.

Top Type Hydraulic Breaker:

Applied to special operation that in large elevation angle.

Product Paramenters

Item/Model	weight (kg)	length (mm)	pressure (bar)	flow (lpm)	rate (bmp)	hose (inch)	chisel (mm)	suit(ton)
JSB100	100	1000	90-120	15-25	900-1400	1/2	40	0.8-2.0
^JSB200	167	1300	90-120	20-40	700-1200	1/2	45	1.2-3.0
JSB300	194	1400	90-120	25-50	600-1100	1/2	53	2.5-4.5
JSB400	363	1700	110-140	40-70	500-900	1/2	68/70	4-7
JSB600	450	1750	110-160	50-90	500-800	1/2	75	6-9
JSB800	730	2100	120-170	60-100	400-700	3/4	85	7-14
JSB900	970	2400	150-170	80-120	400-700	3/4	100	11-16
JSB1600	1950	2700	160-180	120-160	400-700	1	135	19-26
JSB1900	2050	2860	160-180	130-170	400-600	1	140	19-26
JSB3500	3000	3100	160-180	170-220	250-400	1	155	28-40
JSB4500	3300	3286	160-180	200-300	250-350	1 ¼	165	36-45
JSB5000	4250	3800	160-180	210-290	200-350	1 ¼	175	40-55
JSB5000	4900	3700	180-220	220-300	200-250	1 ¼	185	50-60
JSB6000	5400	4200	200-240	230-320	150-200	1 ¼	195	55-65
JSB6500	7400	4300	200-240	320-490	150-200	1 ¼	205	65-100

Applications

Product packaging

1. Inner is stretch film, outside is export wooden case or as customer's request.

2.The standard free spare parts: two Chisels, twohoses, one set of repair tools with tool box,one Nitrogen bottle, one Nitrogen

3.Other accessories are shown below：

How to choose breaker model, please click here.

Our Advantages

1.JISAN HEAVY INDUSTRY LTD. is one of the largest and most professional hydraulic breaker manufacturers with 12 years experience,
specialized in R&D and manufacture of JISAN Series Hydraulic Breaker.
2.Our products have been exported to many countries in the world including India, Saudi Arabia, South America, Australia,
New Zealand, Southeast Asia, USA, Europe, and South Africa etc.
3.Main Advantages of JISAN Hydraulic Breaker:
1.JISAN HEAVY INDUSTRY LTD. is one of the largest and most professional hydraulic breaker manufacturers with 11 years experience,
specialized in R&D and manufacture of JISAN Series Hydraulic Breaker.
2.Our products have been exported to many countries in the world including India, Saudi Arabia, South America, Australia,
New Zealand, Southeast Asia, USA, Europe, and South Africa etc.
3.Main Advantages of JISAN Hydraulic Breaker:
Korea made cylinder;
NOK oil seal, Oil seal durability design;
Low noisy. Full-closed housing to protect the main body;
Strong impact;
Longer lifetime of usage;
