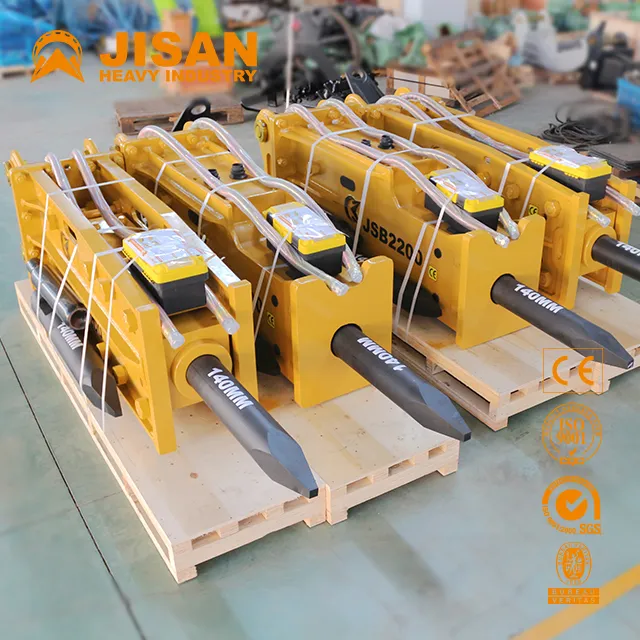

Hydraulic Rock Breaker, Rock breaker, Excavator hammer, Side type breaker, Top type breaker, Box type breaker for excavator
JSB series breakers are compatible with various brands of excavators including:
DOOSAN,SANY,HYUNDAI,PALLET ,VOLVO ,KOBELCO ,KATO ,KUBOTA ,JCB,CASE ,GEHL etc.
Our hydraulic breaker (hydraulic hammer) are applicable to excavators which from1.2 to120 ton
Specifications
Light Duty Parameters
| Model | Unit | JSB200S | JSB300S | JSB400S | JSB600S | JSB800S | JSB900S |
| Weight | Kg | 80 | 165 | 254 | 264 | 486 | 853 |
| Length | Mm | 1100 | 1190 | 1347 | 1528 | 1920 | 2260 |
| Pressure | Kg/m² | 90-120 | 90-120 | 110-140 | 110-160 | 120-170 | 150-170 |
| Flow | L/Min | 15-25 | 25-50 | 25-45 | 30-45 | 45-85 | 80-120 |
| Rate | Bpm | 700-1200 | 600-1100 | 500-900 | 500-800 | 400-700 | 400-700 |
| Hose | Inch | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 |
| Chisel | Mm | 45 | 53 | 68/70 | 75 | 85 | 100 |
| Suit | Ton | 1.2-3.0 | 2.0-4.0 | 3.0-5.5 | 4.0-7.0 | 7.0-14 | 11-16 |
Medium Duty Parameters
| Model | Unit | JSB1600S | JSB1900S | JSB2800S |
| Weight | Kg | 1679 | 1898 | 2455 |
| Length | Mm | 2695 | 2810 | 2895 |
| Pressure | Kg/m² | 160-180 | 160-180 | 160-180 |
| Flow | L/Min | 120-160 | 130-170 | 150-190 |
| Rate | Bpm | 400-700 | 400-600 | 350-500 |
| Hose | Inch | 1 | 1 | 1 |
| Chisel | Mm | 135 | 140 | 150 |
| Suit | Ton | 19-26 | 19-26 | 27-38 |
Heavy Duty Parameters
| Model | Unit | JSB3500S | JSB4500S | JSB5000S | JSB5500S | JSB6500S |
| Weight | Kg | 2650 | 3753 | 3910 | 4500 | 7060 |
| Length | Mm | 3152 | 3310 | 3400 | 3726 | 4430 |
| Pressure | Kg/m² | 160-180 | 160-180 | 160-180 | 180-200 | 190-210 |
| Flow | L/Min | 170-220 | 200-300 | 210-290 | 250-310 | 290-370 |
| Rate | Bpm | 250-400 | 250-350 | 200-350 | 250-450 | 200-400 |
| Hose | Inch | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 |
| Chisel | Mm | 155 | 165 | 175 | 180 | 210 |
| Suit | Ton | 28-40 | 36-45 | 40-55 | 45-55 | 55-120 |
Features:
1.Incorporate much leading edge technology in hydraulic rock breaker. (Lower oil consumption, leading heat treatment, lower noise, long lifespan etc)
2. Suitable with a wide range of excavator.
3. Versatile application including rock broken, paving road, building demolition etc.
4.Top type breaker is applied to special operation that in large elevation angle.
5. Box type breaker namely silent breaker, which is sued in special project that noise is limited.
6. Easy use and easy maintenance.
Our Service
1. 7Days *24Hours phone and email service
2. Your inquiry will be replied in 24 hours
3. Well-trained and qualified staff to answer all your questions
4. OEM Service available
5. Warranty: 14 months warranty for hydraulic breaker, beyond the warranty period, all spare parts offered to you with our cost price (not including freight).
Company Introduction
JISAN is one of the largest and most professional hydraulic breaker manufacturer with ten years experience.
Our products have been exported to many countries in the world including India,Saudi Arabia
, Iran, Brazil, Australia, New Zealand, Southeast Asia, USA and France etc.
With advanced imported CNC Center and strict quality control management, our products have been approved by ISO, CE authority.
Contact Information
Please tell us your excavator or bachoe loader model, we will send you quotation.
