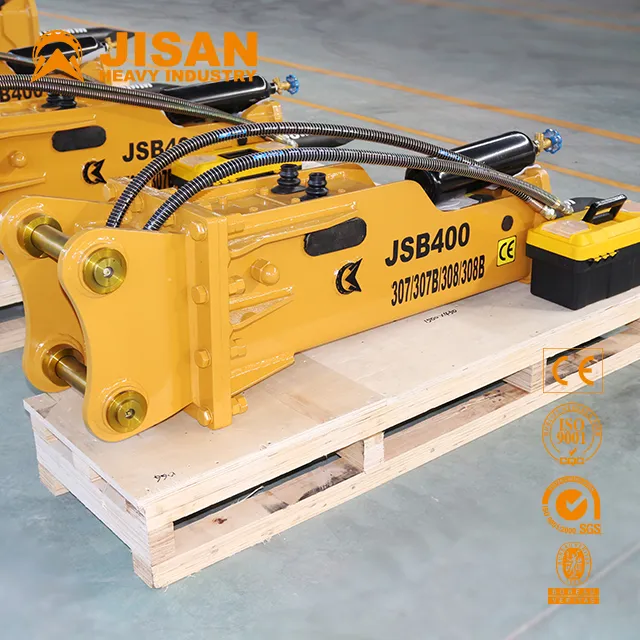

CE Certification Box Silent Type Excavator Rock Breaker for 20tons
Feature
1. Selected raw material-high quality heavy duty wear resistant steel.
2. Hydraulic-gas system,increase stability.
3. High-quality and durable wear parts.
4. Advanced manufacturing facilities.
5. High energy and impact frequency (high performance).
6. High-performance optimized hydraulic unit.
7. Low maintenance,less breakdown,long using life.
Parameter | Model | Weight
(Kg) | Length
(Mm) | Pressure
(kg/cm2) | Flux
(L/Min) | Rate
(Bpm) | Hose
(Inch) | Chisel
(Mm) | Suit
(Ton) |
| JSB200 | 100/120 | 1100 | 90-120 | 15-25 | 700-1200 | 1/2 | 45/53 | 1.2-3.0 |
| JSB400 | 298 | 1347 | 110-140 | 25-45 | 500-900 | 1/2 | 68/70 | 3.0-5.5 |
| JSB600 | 421 | 1528 | 110-160 | 30-45 | 500-800 | 1/2 | 75 | 4.0-7.0 |
| JSB800 | 577 | 1920 | 120-170 | 45-85 | 400-700 | 3/4 | 85 | 7.0-14 |
| JSB900 | 973 | 2260 | 150-170 | 80-120 | 400-700 | 3/4 | 100 | 11-16 |
| JSB1600 | 1855 | 2695 | 160-180 | 120-160 | 400-700 | 1 | 135 | 19-26 |
| JSB1900 | 1989 | 2810 | 160-180 | 130-170 | 400-600 | 1 | 140 | 19-26 |
| JSB2800 | 2420 | 2895 | 160-180 | 150-190 | 350-500 | 1 | 150 | 27-38 |
| JSB3500 | 2750 | 3152 | 160-180 | 170-220 | 250-400 | 1 | 155 | 28-40 |
| JSB4500 | 3160 | 3310 | 160-180 | 200-300 | 250-350 | 1.25 | 165 | 36-45 |
| JSB5000 | 4210 | 3400 | 160-180 | 210-290 | 200-350 | 1.25 | 175 | 40-55 |
| JSB5500 | 4720 | 3400 | 180-220 | 220-300 | 200-250 | 1.25 | 185 | 50-60 |
| JSB6000 | 4910 | 3420 | 180-220 | 230-320 | 180-200 | 1.25 | 190 | 55-65 |
| JSB6500 | 6100 | 3700 | 190-230 | 360-450 | 120-200 | 1.25 | 210 | 65-100 |
Application
1.Mining:Mountains, mining, crushing, secondary crushing
2.Metallurgy, slag cleaning, ladle furnace demolition, demolition
equipment foundation body dissatisfied
3.Railway, tunnel,bridge, mountain down.
4.Highway:highway repair, cement pavement broken, foundation
excavation.
5.Municipal gardens, concrete crushing, gas engineering construction,
the transformation of the old city.
6.Building: the old building demolition, reinforced concrete broken.
7.Other:ice breaking, breaking the permaforst and vibrating sand.
Company Introduction JISAN is one of the largest and most professional excavator attachment manufacturer with ten years experience. Our products have been exported to many countries in the world including India,Saudi Arabia, Iran, Brazil, Australia, New Zealand, Southeast Asia, USA and France etc.
With advanced imported CNC Center and strict quality control management, our products have been approved by ISO, CE authority.
